Ölçüm Sensörleri (Ölçüm Göstergeleri) ve Boyut Ölçüm Sistemleri Nedir?

Ölçümün Temelleri

Ölçüm Sensörleri (Ölçüm Göstergeleri) ve Boyut Ölçüm Sistemleri Nedir?

▼ Ölçüm Sensörleri (Ölçüm Göstergeleri) nedir? ▼ Çeşitli Uygulamalar

Ölçüm Sensörleri (Ölçüm Göstergeleri) nedir?

Nesnenin bulunduğu yer ile referans alınan bir konum arasındaki hareket aralığını ölçebilmek için ölçüm sensörü (ölçüm göstergesi) kullanılır. Hareket aralığına ek olarak bir nesnenin yüksekliğini, kalınlığını ve genişliğini belirleyebilmek için boyut ölçümünde ölçüm sensörleri kullanılabilir. Uygulamaya, istenen hassasiyete ve kullanım ortamına göre en uygun ekipmanın seçilmesi gereklidir. Ölçüm sensörleriyle yapılan ölçümler, ışık veya manyetik alanlar / ses dalgaları kullanılarak temassız ölçüm veya hedefle doğrudan temas halinde gerçekleştirilen temaslı ölçüm olarak iki ana kategoride sınıflandırılabilir.

Kullanılan yöntemlerin prensipleri ve özellikleri aşağıdaki gibidir.

Öğe Temassız tip Temaslı tip
Optik tip Eddy current tip Ultrasonik tip Lazer odaklama yöntemi
Tespit hedefleri Çoğu hedef Metal Çoğu hedef Çoğu hedef Sağlam
Ölçüm mesafesi Normal Kısa Uzun Kısa Kısa
Hassasiyet Yüksek Yüksek Düşük Yüksek Yüksek
Cevap hızı Hızlı Hızlı Yavaş Normal Yavaş
Toz, su, yağ vs. Normal Güçlü Normal Normal Güçlü
Ölçüm alanı Küçük Normal Geniş Küçük Küçük

Çeşitli Uygulamalar

ölçüm sensörlerinin (ölçüm göstergeleri) pek çok farklı amaç için kullanıldığını görmek mümkündür. Aşağıda bu amaçlara birkaç örnek verilmiştir.

Amaç/Hedef Örnek
Kalınlık Sarılmış çelik sacların kalınlığının düzgün olup olmadığının, lamine camın kalınlığının standartları karşılayıp karşılamadığının ölçülmesi vb.
Yükseklik ve adım Hizalanmış PCB’lerin yüksekliğinin düzgün olup olmadığının ve PCB’lere monte edilen çiplerde olağandışı işlemlerin olup olmadığının ölçülmesi.

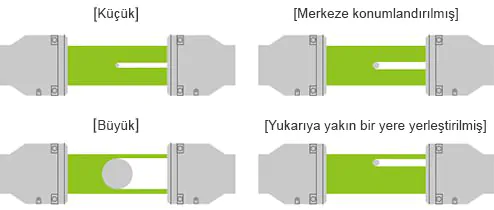

Dış çap Bileşenlerin kabul edilebilir olup olmadığını belirleyebilmek için seri üretilen silindirik bileşenlerin dış çapının ölçülmesi.
Doğrusallık ve Düzlemsellik Bir cam alt tabakanın bükülüp bükülmediğini, cilalı bir metal bileşenin düz olup olmadığını vb. ölçme.
Strok ve konumlandırma Bir kamera modülünün strok miktarının ölçülmesi, hedefin işleme ekipmanı içinde doğru konuma gelip gelmediği vb.
3D Profil Ürünleri çarpıklık açısından kontrol etmenin yanı sıra, tek bir çizgi yerine düz bir yüzey üzerinde geniş çaplı çarpıklık ölçümü.

| Yansıtıcı Modeller

Fotoelektrik/yakınlık düğmesi Ölçüm sensörleri

| Thrubeam Modeli

Fotoelektrik/yakınlık düğmesi Ölçüm sensörleri
<

Ölçümün Temelleri
Ölçüm Sensörü veya Ölçüm Sistemi Seçme

Ölçümün Temelleri
Lazer Güvenlik Standartları ve Sınıfları

>

<INDEX

İdeal ölçüm sistemini seçebilmek için bilinmesi gereken ölçüm ve ipuçları hakkında her şeyi içeren ve mutlaka okunması gereken bir kılavuz!

Bu kılavuzda, ölçüm sistemlerinin tanıtılmasının yanı sıra kalınlık, dış çaplar, şekil ve daha fazlasını ölçmek için kullanılabilecek en iyi yöntemler ayrıntılarıyla anlatılmıştır.
