Keyence FT Sıcaklık sensörleri

Keyence FT Dijital termometre

Keyence FT Nesnelerin sıcaklığını temas etmeden uzun mesafede ölçen infrared termometrelerdir. Nesnelerden yansıyan infrared yansımayı, belirlenen emisyon değerlerine göre hesaplayıp sıcaklık değerini ölçerken, nesnein sıcaklığına göre algılamanın gerçekleşmesini sağlar. En doğru ölçümleri yapabilmek için ölçüm yapılacak nesnenin bilinen emisyon katsayısı cihaza girilebilirken diğer yandan emisyon değeri bilinmeyen nesneler içinde sıcaklık değerinin cihaza girilmesine imkan sağlar. Nesnelerin sıcaklığına göre hızlı bir şekilde sıcaklıkları ölçülüp, uygun sıcaklıkta olup olmadıkları ve planlanan işlemin yapılıp yapılmadığı kararlılıkla tespit edilir.

Özellikler
  • Max. 3m ye kadar ölçüm yapabilen sensör alternatifleri
  • Min. 1,5mm kalınlığa sahip nesnelerin sıcaklığının ölçülmesi
  • 1350°C ve 500°C ölçüm yapabilen iki farklı ölçüm aralığı
  • 10ms ile yükske hızda sıcaklığın ölçülmesi
  • Çift lazer ışığı ile ölçüm alanının en etkin şekilde belirliğinin sağlanması
  • Koruma kılıfı ve kılıf için germanyum cam
  • Değiştirilebilir emisyon katsayısı girebilme ve otomatik emisyon katsayı hesabı
  • Güvenilir, kararlı ve tekrarlanabilir sıcaklık ölçümü için IPC devre
  • Tüm ayarlamaların yapıldığı dijital amfi ünitesi
  • Zamanlama ve farklı ölçümler için hafıza fonksiyonları
  • Ölçeklendirilebilen analog çıkış ve ayarlanabilir dijital çıkışlar
Uygulama Alanları

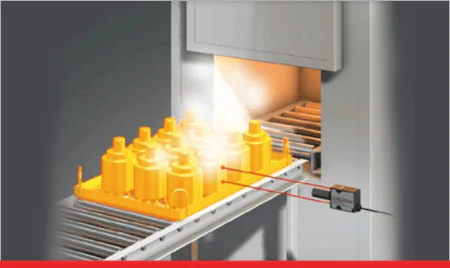

  • Nesnelerin sıcaklığından faydalanarak varlık yokluk tespitleri
  • Nesnelerin uygun sıcaklıkta veya uygun sıcaklık aralığında olduğunun onaylanması
  • Nesnelerin yüzey sıcaklıklarına göre yapılacak işlemlerin uygunluğu
  • Nesnelerin sıcaklığının ölçülerek kalite onaylamalarının yapılması

Dokümanlar

Keyence FT Dijital Termometre

Teknik özellikler



Model

FT-50AP * 1

type

DIN rail mounting type

Power-supply voltage

DC12-24V Ripple (PP) 10% or less

power consumption

Normal

1400mW (at 12V), 1600mW (at 24V)

Power saving

1150mW (at 12V), 1350mW (at 24V)

Display method

4 + 1/2 digit 7-segment LED red, green 2-stage display (character height upper: 8 mm, red lower: 5.7 mm, green) Display update: 10 times / sec

Operation indicator

Red LED x 3 (corresponds to control output 1 / control output 2 / timing input indicator)

Display resolution

0.1 ℃ or 1 ℃ (when using FT-H10 / H20 / H30), 1 ℃ (when using FT-H50 / H40K / H50K)

Hysteresis

variable

responsiveness

HSP, 30, 100, 200, 500, 1000, 5000ms selected (HSP: representative example 10ms, maximum 15ms)

Bank switching

Switch between timing input line and analog output line for bank input / Up to 4 banks can be set

Bank specifications

Emissivity (in temperature mode) and set value x 2 can be set for each bank

External input

Timing input

Non-voltage input (contact, non-contact) Input time 2ms or more

Bank input

Non-voltage input (contact, non-contact) Input time 20ms or more

Control output

PNP open collector x 2ch, NO / NC switchable, DC30V or less Maximum 50mA Residual voltage 1V or less

Analog output

4 to 20mA Maximum load resistance 260Ω (Upper and lower limits of analog output range can be set arbitrarily)

Environmental resistance

Operating ambient temperature

-10 to + 50 ° C (do not freeze) * 2

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Material

Body, cover: polycarbonate, key top: polyester elastomer, cable: vinyl chloride
fixture: SUS304

accessories

DIN fixture, power cable, unit cover seal

mass

About 85 g

* 1 The type with A at the end is the type corresponding to the additional release model (FT-H50 / H40K / H50K).
An error will occur if an additional model (FT-H50 / H40K / H50K) is connected to the old type amplifier.
* 2 When using analog output, it is -10 ° C to + 45 ° C.

Model

FT-55AP * 1

type

Panel mounting type

Power-supply voltage

DC12-24V Ripple (PP) 10% or less

power consumption

Normal

1400mW (at 12V), 1600mW (at 24V)

Power saving

1150mW (at 12V), 1350mW (at 24V)

Display method

4 + 1/2 digit 7-segment LED red, green 2-stage display (character height upper: 8 mm, red lower: 5.7 mm, green) Display update: 10 times / sec

Operation indicator

Red LED x 3 (corresponds to control output 1 / control output 2 / timing input indicator)

Display resolution

0.1 ℃ or 1 ℃ (when using FT-H10 / H20 / H30), 1 ℃ (when using FT-H50 / H40K / H50K)

Hysteresis

variable

responsiveness

HSP, 30, 100, 200, 500, 1000, 5000ms selected (HSP: representative example 10ms, maximum 15ms)

Bank switching

Switch between timing input line and analog output line for bank input / Up to 4 banks can be set

Bank specifications

Emissivity (in temperature mode) and set value x 2 can be set for each bank

External input

Timing input

Non-voltage input (contact, non-contact) Input time 2ms or more

Bank input

Non-voltage input (contact, non-contact) Input time 20ms or more

Control output

PNP open collector x 2ch, NO / NC switchable, DC30V or less Maximum 50mA Residual voltage 1V or less

Analog output

4 to 20mA Maximum load resistance 260Ω (Upper and lower limits of analog output range can be set arbitrarily)

Environmental resistance

Operating ambient temperature

-10 to + 50 ° C (do not freeze) * 2

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Material

Body, cover: polycarbonate, key top: polyester elastomer, cable: vinyl chloride
panel fixture: polyacetal, front protective cover: polycarbonate

accessories

Panel fixture, protective cover, power cable, unit cover seal

mass

About 85 g

* 1 The type with A at the end is the type corresponding to the additional release model (FT-H50 / H40K / H50K).
An error will occur if an additional model (FT-H50 / H40K / H50K) is connected to the old type amplifier.
* 2 When using analog output, it is -10 ° C to + 45 ° C.

Model

FT-H10

type

Medium / low temperature small spot

Rated temperature range

0-500 ℃ * 1

Display temperature range

-50 to 520 ° C

Detection distance

No limit * 2

Measurement distance / field diameter (typical example)

17.5 / ø6.3mm
35 / ø1.5mm
52.5 / ø8mm

Aim

Two-point projection with visible light laser * 3

Detection element

Thermopile

Detection wavelength

8-14 µm

Reproducibility

± 0.5 ℃

Emissivity (ε) correction

0.10 to 1.99 (0.01 steps)

Environmental resistance

Operating ambient temperature

-10 to + 55 ° C (do not freeze)

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Impact resistance

500 m / s 2 , X, Y, Z 10 times in each direction, 60 times in total

Material

Case: Glass tempered polyetherimide, Infrared condensing lens: Germanium, Laser floodlight cover: Polyarylate,
Cable: Vinyl chloride, Mounting tool: SUS304, Mounting screw: Stainless steel

accessories

Mounting bracket

mass

About 120 g

* 1 Reproducibility is guaranteed within the rated temperature range.
* 2 Use at a distance where the size of the detector is 1.5 times or more the viewing diameter.
* 3 Visible light semiconductor laser Wavelength 655nm (FDA class I / IEC class1 / JIS class 1)

Model

FT-H20

type

Medium / low temperature Medium distance

Rated temperature range

0-500 ℃ * 1

Display temperature range

-50 to 520 ° C

Detection distance

No limit * 2

Measurement distance / field diameter (typical example)

60 / ø8.5mm
120 / ø6mm
180 / ø14.5mm

Aim

Two-point projection with visible light laser * 3

Detection element

Thermopile

Detection wavelength

8-14 µm

Reproducibility

± 0.5 ℃

Emissivity (ε) correction

0.10 to 1.99 (0.01 steps)

Environmental resistance

Operating ambient temperature

-10 to + 55 ° C (do not freeze)

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Impact resistance

500 m / s 2 , X, Y, Z 10 times in each direction, 60 times in total

Material

Case: Glass tempered polyetherimide, Infrared condensing lens: Germanium, Laser floodlight cover: Polyarylate,
Cable: Vinyl chloride, Mounting tool: SUS304, Mounting screw: Stainless steel

accessories

Mounting bracket

mass

About 120 g

* 1 Reproducibility is guaranteed within the rated temperature range.
* 2 Use at a distance where the size of the detector is 1.5 times or more the viewing diameter.
* 3 Visible light semiconductor laser Wavelength 655nm (FDA class I / IEC class1 / JIS class 1)

Model

FT-H30

type

Medium / low temperature long distance

Rated temperature range

0-500 ℃ * 1

Display temperature range

-50 to 520 ° C

Detection distance

No limit * 2

Measurement distance / field diameter (typical example)

200 / ø15mm
400 / ø18mm
600 / ø33mm

Aim

Two-point projection with visible light laser * 3

Detection element

Thermopile

Detection wavelength

8-14 µm

Reproducibility

± 0.5 ℃

Emissivity (ε) correction

0.10 to 1.99 (0.01 steps)

Environmental resistance

Operating ambient temperature

-10 to + 55 ° C (do not freeze)

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Impact resistance

500 m / s 2 , X, Y, Z 10 times in each direction, 60 times in total

Material

Case: Glass tempered polyetherimide, Infrared condensing lens: Germanium, Laser floodlight cover: Polyarylate,
Cable: Vinyl chloride, Mounting tool: SUS304, Mounting screw: Stainless steel

accessories

Mounting bracket

mass

About 120 g

* 1 Reproducibility is guaranteed within the rated temperature range.
* 2 Use at a distance where the size of the detector is 1.5 times or more the viewing diameter.
* 3 Visible light semiconductor laser Wavelength 655nm (FDA class I / IEC class1 / JIS class 1)

Model

FT-H50

type

Medium / low temperature ultra long distance

Rated temperature range

0-500 ℃ * 1

Display temperature range

-50 to 520 ° C

Detection distance

No limit * 2

Measurement distance / field diameter (typical example)

500 / ø18mm
1500 / ø30mm
3000 / ø75mm

Aim

Two-point projection with visible light laser * 3

Detection element

Thermopile

Detection wavelength

8-14 µm

Reproducibility

± 3 ℃

Emissivity (ε) correction

0.10 to 1.99 (0.01 steps)

Environmental resistance

Operating ambient temperature

-10 to + 55 ° C (do not freeze)

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Impact resistance

500 m / s 2 , X, Y, Z 10 times in each direction, 60 times in total

Material

Case: Glass-reinforced polyetherimide, Infrared condenser lens: Germanium, Laser projector cover: Polyarylate, Lens
barrel: Aluminum, Cable: Vinyl chloride, Mounting tool: SUS304, Mounting screw: Stainless steel

accessories

Mounting bracket

mass

About 150 g

* 1 Reproducibility is guaranteed within the rated temperature range.
* 2 Use at a distance where the size of the detector is 1.5 times or more the viewing diameter.
* 3 Visible light semiconductor laser Wavelength 655nm (FDA class I / IEC class1 / JIS class 1)

Model

FT-H50K

type

High temperature ultra long distance

Rated temperature range

0 to 1350 ℃ * 1

Display temperature range

-50 to 1400 ℃

Detection distance

No limit * 2

Measurement distance / field diameter (typical example)

500 / ø18mm
1500 / ø30mm
3000 / ø75mm

Aim

Two-point projection with visible light laser * 3

Detection element

Thermopile

Detection wavelength

8-14 µm

Reproducibility

± 3 ℃

Emissivity (ε) correction

0.10 to 1.99 (0.01 steps)

Environmental resistance

Operating ambient temperature

-10 to + 55 ° C (do not freeze)

Operating ambient humidity

35-85% RH (no condensation)

Vibration resistant

10-55 Hz, double amplitude 1.5 mm, X, Y, Z 2 hours each axis

Impact resistance

500 m / s 2 , X, Y, Z 10 times in each direction, 60 times in total

Material

Case: Glass-reinforced polyetherimide, Infrared condenser lens: Germanium, Laser projector cover: Polyarylate, Lens
barrel: Aluminum, Cable: Vinyl chloride, Mounting tool: SUS304, Mounting screw: Stainless steel

accessories

Mounting bracket

mass

About 150 g

* 1 Reproducibility is guaranteed within the rated temperature range.
* 2 Use at a distance where the size of the detector is 1.5 times or more the viewing diameter.
* 3 Visible light semiconductor laser Wavelength 655nm (FDA class I / IEC class1 / JIS class 1)

Model

FT-S1 * 1

Air conditions

Recommended flow rate

15ℓ / min

Pressure resistance

1MPa or less (entrance side)

Compatible tube outer diameter

ø6mm

Material

Body: Zinc, Cap: Aluminum, Cable packing / O-ring: NBR
Fitting: Brass nickel plated

mass

About 700 g

* 1 FT-S1 has no cooling effect.

İnsanların web sitemizi nasıl kullandıklarını analiz ederek, deneyiminizi ve hizmetlerimizi daha iyi hale getirmek için kendi çerezlerimizi ve üçüncü taraf çerezleri kullanıyoruz. Web sitesini kullanmaya devam ettiğinizde bunların kullanımını kabul ettiğinizi anlıyoruz. Çerez Politikamız hakkında daha fazla bilgi için burayı tıklayın.
