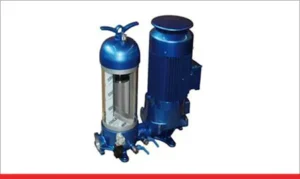

Rüzgar Türbini İki Kademeli Filtre – PI 8300

  • Yağ filtrasyonunda 2 kademeli filtre elemanları
  • Benzersiz Premium Select elemanı
  • Entegre güvenilir bypass valfleri

Yağ filtrasyonunda 2 kademeli filtre elemanları ; Benzersiz Premium Select elemanı ile 2 kademeli filtre elemanı, entegre güvenilir bypass valfleri ve sağlam yapısı ile , rüzgar türbinlerinde dişli kutusu yağlama yağı filtrelemesi için kullanılır. Bu filtre elemanları Pi 8300 Yaglama Modülü ve düşük basınçlı Pi 260 serisi filtre gövdelerinde kullanılır.

Dokümanlar

Avantajları;

Aşamalı yapı: Cam elyaf malzemesinin incelik derecesinin (mikron boyutunun) içten dışa dogru azalarak uygulanan derinlik yapısı, filtrenin avantajlarını geniş ve etkili bir filtreleme yüzeyinin avantajlarıyla birleştirerek derinlik filtresi ile yüzey filtrasyonunun kombinasyonunu oluşturmaktadır.

Sonuç: Düşük basınç kaybında yüksek büyük kir toplama kapasitesine sahip olması.

Benzersiz, çok katmanlı Filtration Group Premium Select (PS) katlanmış yıldız şekil filtre tasarımı, kimyasal ve termal olarak dayanıklı malzemelerden imal edilmiştir.

Her iki tarafta yüksek kaliteli paslanmaz çelikten yapılmış destek yapısı, katlanan yıldız şeklinin yüksek sağlamlığını garanti eder.

Kimyasal direnç, yüksek kaliteli paslanmaz çelik filtre medyası kullanılarak garanti edilmektedir.

Hidrolik ve yağlama sıvıları, yakıtlar, sulu ortamlar ve sentetik sıvılar için evrensel kullanıma uygundur.

Yüksek diferansiyel basınç dayanıklılığı ve yüksek kir toplama kapasitesi

Filtre Kademeleri ;

  • Kademe – glass fiber filtre medyası.
  • Kademe – wire mesh paslanmaz çelik 50 mikron filtre (DRG 50)

2 aşamalı filtrede, filtre elemanı boyunca akış yönü dışardan içeriye doğrudur. İlk filtre aşaması (1), çok tabakalı yıldız katlı derinlik filtresi, öngörülen saflık sınıfından sorumludur. İlk filtre aşamasının içinde koruma filtresi (2), filtrelenmiş yağın dişli kutusu içine akmasına izin verilecek şekilde monte edilir.

2 çalışma modu vardır, normal mod ve bypass modu

Normal mod:

Üst uç plakasındaki bypass valfleri (3) kapalıdır ve filtre edilmemiş yağ , 1. filtre aşamasından (1) derinlik filtresinden filtrelenecek şekilde geçer.

Ardından, filtrelenmiş yağ, yüzey filtresi olan 2. filtre aşamasına (2) geçer.

Bypass modu:

Yağlama sistemi soğuk başlangıçte , yağlama yağı viskozitesi (ISO VG 320) yüksek olabilir ki filtre elemanındaki basınç, baypas valflerini (3) açacak kadar yüksektir. Bu, filtrelenmemiş yağın bir kısmı birinci filtre aşamasından (1) geçer ve filtrelenmemiş yağ 2. aşama filtre elemanının içine girer ve ikinci filtre aşamasından (2) filtre edilir.

Bu, rüzgar türbini şanzımanının her zaman filtrelenmiş yağ ile çalışmasını garanti eder.

Kullanım Alanı :

  • Rüzgar Türbinleri
  • Dişli kutusu yağlama yagı filtrasyonu.
