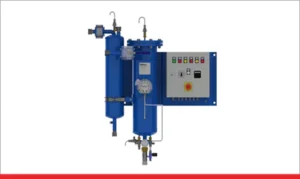

KFWA Yakıt Arıtma Sistemi 670 lt/saat – 8000 lt/saat

Verimli yakıt filtre sistemi, serbest su konsantrasyonlarının 70 ppm’nin üzerine çıkmasını önler. Böylelikle “mazot zararlısına” karşı etkili bir koruma görevi görür. Tek aşamalı sistem, öncelikle denizcilikte kullanılır, motor hasarını ve sistem arızasını önlemek için. Kompakt tasarımı nedeniyle, bir geminin makine dairesinde az yer kaplar.

Güvenli, tam otomatik filtreleme ve su ayırma

  • Genellikle Denizcilik ve Marine sektöründe kullanılmaktadır
  • Tek bir sistemde filtreleme ve su ayırma
  • Basit operasyon
  • Yüksek operasyonel güvenlik
  • Artık su içeriği 70 ppm’den az serbest su içeriği ve bu nedenle geleneksel arıtma sistemlerinden önemli ölçüde daha verimli
  • Düşük işletme ve bakım maliyeti
Dokümanlar

KFWA, yakıt filtreleme ve ayırma için kullanılır. Saha koşullarına daha kolay adaptasyon için sistem iki parça halinde (pompa modülü / filtre modülü) teslim edilir. Dişli pompa, ortamı yakıtın filtrelendiği ve ayrıldığı filtre aşamasına pompalar. Ayrılan su bir sensör ile tespit edilir ve otomatik olarak boşaltılır. Filtreleme ve ayırma kademesinin kirlenmesi, fark basınç sensörü kullanılarak izlenir. Basınç farkı 2.0 bar’a ulaşırsa, ana alarm velirir (ön alarm: 1,8 bar) ve iç arıtma filtre elemanı değiştirilmelidir. Alarm mesajına rağmen elemanı değiştirmek mümkün değilse, pompaya takılan tahliye vanası baypası açana kadar basınç yükselmeye devam eder. Yakıt daha sonra filtrelenmeden arıtma aşamasından geçer ve filtrelemeden motor filtreleri sorumludur. Bu durumda, baypas nedeniyle yakıt artık susuzlaştırılmaz. KFWA BY sistemi, depolama tankı ile ana motor arasında kullanılmak üzere tasarlanmıştır.

Classification : Germanischer Lloyd Type Approval Lloyds Register Type Approval

KFWA Seçenekleri

  • KFWA 1
  • KFWA 2
  • KFWA 3
  • KFWA 4

Dokümanlar

Filtration Group KFWA BY_NG670-8000

Filtration Group KFWA MAIN NG670-8000
