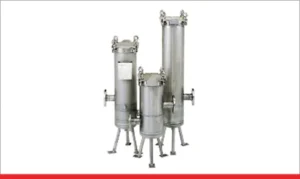

Kartuş Filtre Gövdeleri

Amafilter® sıvı kartuş filtre muhafazaları kalite, işlevsellik ve güvenilirlik sağlamak için tasarlanmış ve üretilmiştir. ASME endüstri standartlarına göre üretilirler ve ön filtreleme, son filtreleme ve parlatma filtreleme dahil olmak üzere çeşitli filtreleme işlemlerinde kullanılabilirler. Muhafazalarımız KİMYA, GIDA VE İÇECEKLER ile MADENLER ve MADENCİLİK endüstrilerinde yaygın olarak kullanılmaktadır.

Özel müşteri gereksinimlerini karşılamak ve gerekli tüm düzenlemeleri ve uluslararası standartları karşılamak için kartuş filtre muhafazalarını özel olarak tasarlayabiliriz. Zorluklarını anlamak ve konutlarımızı onların benzersiz ihtiyaçlarını karşılayacak şekilde tasarlamak ve özelleştirmek için müşterilerimizle yakın işbirliği içinde çalışıyoruz.

Dokümanlar

AFK6-24

Tüm endüstriyel sıvı ve gaz uygulamaları için paslanmaz çelik çoklu kartuş filtre muhafazası PED 2014/68 / EU’ya uygundur.

Filtration Group Proses Sistemleri (amafilter – LFC Lochem) AFK tipi Kartuş Filtre Gövdeleri  paslanmaz çelikden imal edilmiştir. Toplam dört model farklı filtre adetleri ihtiva etmekte olup  (AFK6, AFK12, AFK18 ve AFK24), çeşitli akış oranlarına uyacak şekilde tasarlanmışlardır.

AFK kartuş muhafazaları, PED 2014/68 / EU kategori III’e uygun tüm endüstriyel sıvı ve gaz uygulamaları için ekonomik bir çözümdür. Maksimum sıcaklık 150 oC’dir.

  • Çalışma Basıncı : -1 / 10 bar(g)
  •  Material : 316Ti (1.4571)
  •  Bağlantı : DN 50

AFK30-40

Tüm endüstriyel sıvılar için çoklu kartuş filtre muhafazası PED 2014/68 / EU’ya uygundur

Filtration Group Proses Sistemleri (amafilter – LFC Lochem) AFK30-40 serisi, paslanmaz çelik endüstriyel kartuş filtre muhafazalarıdır. Bu modeller, çeşitli akış hızlarına uymak için AFK serisindeki orta boy modellerdir.

Sıvı muhafazasına bağlı AFK  filtre gövdeleri, PED 2014/68 / EU’ya uygun tüm endüstriyel sıvılar için ekonomik bir çözümdür. Maksimum sıcaklık 150 oC’dir.

  • Çalışma Basıncı : -1 / 10 bar(g)
  •  Material : 316Ti (1.4571)
  •  Bağlantı : DN 80

AFK72

Multi kartuş filtre muhafazası paslanmaz çelik, tüm endüstriyel sıvılar için ekonomik çözüm

Filtration Group Proses Sistemleri (amafilter – LFC Lochem) AFK30-40 serisi, paslanmaz çelik endüstriyel kartuş filtre muhafazalarıdır. Bu modeller, çeşitli akış hızlarına uymak için AFK serisindeki büyük boy modellerdir.

Sıvı muhafazasına bağlı AFK  filtre gövdeleri, PED 2014/68 / EU’ya uygun tüm endüstriyel sıvılar için ekonomik bir çözümdür. Maksimum sıcaklık 150 oC’dir.

  • Çalışma Basıncı : -1 / 12 bar(g)
  •  Material : 316Ti (1.4571)
  •  Bağlantı : DN 100
  • Kartuş Uzunluğu: 40 ”

AFK136

Çok kartuşlu filtre muhafazası ekonomik tüm endüstriyel sıvılar için çözüm PED 2014/68 / EU’ya uygundur.

Filtration Group Proses Sistemleri (amafilter – LFC Lochem) muhafaza tipi AFK136, paslanmaz çelikten yapılmış endüstriyel bir kartuş filtre muhafazasıdır. Bu model, çeşitli akış hızlarına uyması için AFK serisindeki en büyük standart modeldir.

AFK kartuş muhafazası, akışkan reolojisine bağlıdır, tüm endüstriyel sıvı ve gaz uygulamaları için ekonomik bir çözüm, PED 2014/68 / EU kategori IV’e uygundur. Maksimum sıcaklık 150 oC’dir.

  • Çalışma Basıncı : -1 / 12 bar(g)
  •  Material : 316Ti (1.4571)
  •  Bağlantı : DN 150
  • Kartuş Uzunluğu: 40 ”

AFS

Hijyenik kartuş filtre muhafazası serisi, ilaç ve gıda & içecek endüstrilerinde kanıtlanmış kalite

Filtration Group Proses Sistemleri (amafilter – LFC Lochem), steril filtre uygulamaları için tekli ve çoklu kartuş filtre muhafazaları sağlar. Paslanmaz çelikten bir dizi yüksek kaliteli sıhhi filtre muhafazası sunuyoruz. Filtre muhafazaları, AFS1, AFS3-8 ve AFS12-30, PED2014 / 68 / EU’ya uygundur. Bu filtre muhafazası serisi için maksimum sıcaklık 4 barda 150 oC’dir.

  • Çalışma Basıncı : -1 / 10 bar(g)
  •  Material : 316L

AFM6-24

Tehlikeli olmayan sıvıların veya (proses) suyunun filtrasyonu için çoklu kartuş filtre muhafazaları

Filtration Groupu Proses Sistemleri (amafilter – LFC Lochem) filtre muhafazası tipi AFM6-24, paslanmaz çelik endüstriyel kartuş filtre muhafazalarıdır. Çeşitli akış hızlarına uyacak dört farklı boyut mevcuttur. AFM kartuş filtre muhafazaları, tehlikeli olmayan tüm endüstriyel sıvı uygulamaları için ekonomik bir çözümdür. Maksimum sıcaklık 90 oC’dir. Tasarım, PED2014 / 68 / EU madde 4, paragraf 3’e göre tasarlanmıştır.

  • Çalışma Basıncı : -1 / 10 bar(g)
  •  Material : 316Ti(1.4571)

Filtre Tipi

  • AFM6 = 6 Filtre Kartuşu – 10”
  • AFM12 = 6 Filtre Kartuşu- 20”
  • AFM18 = 6 Filtre Kartuşu- 30”
  • AFM24 = 6 Filtre Kartuşu- 40”

S-AFC3-24

Plastik çoklu kartuş filtre muhafazası deniz suyu veya kimyasalların filtrasyonu,

Spesifik uygulamalarda, bir metal filtre muhafazasına göre plastik bir çoklu kartuş filtre muhafazası tercih edilir. amafilter – LFC Lochem bu uygulamalar için S-AFC3-24 serisi ile çözüme sahiptir. S-AFC3-24, polipropilen çoklu kartuş filtre muhafazasıdır. Kartuş filtreler, ince partikül içeren sıvıların filtrasyonunda, emniyet filtresinde, son filtrasyon olarak veya küçük konsantrasyonlarda partikül içeren sıvıların filtrasyonunda kullanılmaktadır

Kullanım Alanları

  • Deniz suyunun filtrasyonu
  • Kimyasalların filtrelenmesi (asitler ve alkali gibi)

Maksimum (Çalışma) Sıcaklıgı: 900C / 1 bar da

Maksimum (Çalışma) Basıncı: 6 bar / 300C de

Filtre Gövde Malzemesi: : polypropylene /Polipropilen

AFL1-S

Tek kartuş filtre muhafazaları, küçük debiler ve düşük akış uygulamaları için ekonomik çözüm

Filtration Group Proses Sistemleri (amafilter – LFC Lochem) AFL1-S paslanmaz çelik kartuş filtre muhafazası, tek bir filtre kartuşunu barındıracak şekilde tasarlanmıştır. Bu filtre muhafazası, parlatma gerektiren son filtrasyon uygulamalarında veya düşük akış uygulamaları (maksimum 3 m3 / saat) için idealdir. Muhafazanın kapatılması, filtre kartuşunu değiştirmek için alet kullanma ihtiyacını ortadan kaldırır. Filtre kartuşu muhafazası, tehlikeli olmayan sıvıları filtrelemek için uygundur ve PED 2014/68 / EU madde 4, paragraf 3’e uygundur. Filtre muhafazasının maksimum sıcaklığı 90 oC.

Uygulamalar: Su filtrasyonu, Kimyasalların filtrasyonu, Yiyecek ve içeceklerin filtrasyonu, Tehlikeli olmayan sıvıların filtrasyonu

  • Çalışma Basıncı : 10 bar(g)
  • Çalışma Sıcaklıgı: 90 oC
  • Material : 316 L

Kartus Boyu :

  • 10 = 10″ (254 mm) length
  • 20 = 20″ (508 mm) length

HFH Serisi Yüksek Debili Filtre Gövdeleri (1 ila 19 kartuş)

Filtration Group

HFH1-19, çok yüksek akışlı kartuş filtre muhafazası ile yüksek akış süreçleri sağlar. HFH, küçük bir “”ayak izi”” alanını kaplarken, yüksek verimle özel olarak tasarlanmıştır. HFH filtre muhafazaları, alan mevcudiyetine bağlı olarak hem yatay hem de dikey yönde kullanılabilir. Sıralı yatay olarak monte edilmiş muhafaza, basınç düşüşünü en aza indirir .

Filtre muhafazası serisi, PED2014 / 68 / EU madde 4, paragraf 3’e uygundur. Bu filtre muhafazası serisi için maksimum sıcaklık 90 oC’dir.

Uygulamalar: Proses suyunun filtrasyonu, Atık su filtrasyonu, Soğutma suyu filtrasyonu, Kullanım suyunun filtrasyonu,  kimyasalların filtrasyonu

Çalışma Basıncı : 10 bar(g)                                                                                      Çalışma Sıcaklığı: 90 oC

Kartuş Uzunluğu

  • 20″ (HFH1)
  • 40″ (HFH1-9)
  • 60″

Materyal

A = Paslanmaz Çelik  304

S = Paslanmaz Çelik  316

HFH1 :    DN100

HFH2 :    DN150

HFH3 :    DN200

HFH4 :    DN200

HFH5 :    DN250

HFH7 :    DN300

HFH9 :    DN350

HFH12 :   DN400

HFH15 :   DN450

HFH17 :   DN450

HFH19 :   DN500

Dokümanlar
