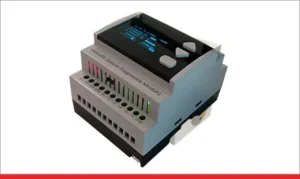

Hidrolik Sistem Diagnostik Modülü

İşletmelerde filtreler tıkandıklarında elektrikli kirlilik sensörleri uyarı verse bile çalışma durmamakta, filtre değişimi ertelenmekte, unutulmakta ve tıkanmış filtre ile çok uzun süreler çalışılmaktadır.

Filtreler kirlenip tıkandıklarında, hidrolik yağlar filtre üzerindeki by-pass valfinden filtrelenmeden geçer, bu da tüm hidrolik sistem ekipmanlarının ömrünü kısaltır, arızalara sebep olur, üretim kaybını ve bakım maliyetlerini arttırır.

ENTEK tarafından geliştirilen, Hidrolik Sistem Diagnostik Modülü ile filtre tıkanma uyarısı size e-mail olarak iletilir. Ayrıca, bulutta size özel sayfadan, tüm tıkanma uyarılarına ait bilgileri online olarak izleyebilirsiniz.

Avantajlar

  • Filtre tıkanma bilgisi anında e-mail ile size iletilir.
  • Geçmişe ait tüm tıkanma verilerini görme, gerekli bakımların zamanında yaptırılabilme olanağı,
  • Makinelerde, hangi sıklıklarda filtrelerin tıkandıklarını izleme ve öngörüde bulunma,
  • Bakım planlamasını, yedek parça stoğunu veriye dayalı olarak yapabilme,
  • Hidrolik sistemin tüm seviye, sıcaklık, filtre tıkanma verilerini izleyerek, doğru koşullarda
    çalıştığından emin olmak, makinelerinizin performansının, üretkenliğinin artmasını sağlamak,

Hidrolik Sistem Diagnostik Modülü Teknik Özellikler

Güç Kaynağı 24V DC (+-%10)
Güç Tüketimi 200 mA
Dijital Girişler 5 x DI 24V DC PNP
Analog Girişler 3 x AI
0-10V, 4-20mA
Seri Port 1 x RS-232 Micro USB
Wi-Fi 802.11b/g/n 16mpbs
Montaj DIN RAY
Çalışma Sıcaklığı -40°C … +125°C
Boyutları Genişlik: 92mm
Yükseklik: 78mm

Derinlik: 46mm
