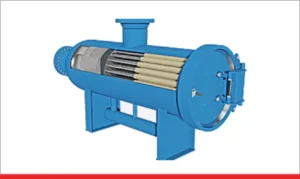

GW & GE Serisi – Islak Gaz Filtresi Separatörleri

Islak gaz için GW serisi filtre ayırıcılar, su, doğal gaz sıvıları ve hafif hidrokarbonlar dahil olmak üzere toz, kir, kum ve boru içi kirletici parçacıklarını ve sıvıları giderir. Bu yuvalar, kartuşlar ve  mist giderici kullanan iki aşamalı bir yapıya sahiptir. Düşük hacimli uygulamalar için dikey konfigürasyon GW Serisini seçin. Ayrıca yüksek hacimli uygulamalar için GE serisi (yatay muhafaza konfigürasyonu) mevcuttur.

Gaz endüstrisinin en önemli ürünü olan Gas Filter Separator , piyasadaki en yaygın kullanılan filtrasyon cihazlarından biridir. 70 yıldan daha uzun bir süre önce tanıtılan, doğal gazı arındırmak ve sermaye yatırımınızı korumak için tercih edilen ekipman haline geldi.

Bir Gaz Filtresi  işlevi, bir doğal gaz akışından ince ila orta boyutlu katı kirleticileri ve sürüklenen sıvıyı uzaklaştırmaktır. Tipik kirleticiler bu şekildedir,

  • Su ve hidrokarbonlar gibi sıvılar.
  • Kum, korozyon bileşikleri ve aşındırıcılar gibi parçacıklar,
  • Boru hattı kaynaklı kirlilikler ve  kimyasalları.
Dokümanlar

Gaz Filtresinin Başlıca Uygulamaları

  • Gaz depolama tesisleri
  • Glycol dehydrators
  • Ölçüm istasyonları
  • Doğal gaz kompresörleri

Genellikle  Reverse Flow Coalescer veya Separator  tasarımı, filtreleme ve ayırmanın üç aşamasından oluşur: devre dışı bırakma kadamesi (knockout stage), eleman (filtrelema) aşaması ve ayırma (seperatör) aşaması. Eleman ve ayırma aşamaları ayrı bölmelerde bulunur.

Eleme Aşaması (knockout stage)

Doğal gaz Filtre Seperatörüne girdiğinde, yükselticiler olarak da bilinen eleman destek direklerine çarpar. Elemanlara doğrudan gaz çarpmasını önlemek için yükselticilerin doğru uzunluğu önemlidir. Yükselticilerdeki gaz çarpması, herhangi bir kirletici maddenin çarpma, sapma ve yerçekimi yoluyla gaz akışından ayrılması için kullanılır. Sapmayı en üst düzeye çıkarmak ve yerçekimi ayrımından en iyi şekilde yararlanmak için Jonell Systems Filtre Ayırıcıları, özel olarak optimize edilmiş bir yükseltici düzeni kullanır.

Eleman Aşaması

Filtre kademesi, maksimum kir tutması için Jonell Systems patentli TRI-SHiELD derinlik kartuşları ile donatılmıştır. Katı maddelerin maksimum düzeyde uzaklaştırılması için  dıştan içe filtreleme yapmaktadır. Kartuşlar ayrıca sıvı damlacıkları birleştirme ve ayırma işlevi görür.

Ayırma Aşaması

Kirletici maddenin niteliğine bağlı olarak, ayırma aşaması mevcut üç ayırmadan biri ile donatılabilir

  • Bir tel örgü buğu giderici ( Mist eliminatör)
  • A vane pack or mesh-vane assembly
  • Bir santrifüj cihazı

Bir tel örgü buğu giderici ( Mist eliminatör)

A vane pack or mesh-vane assembly

Bir santrifüj cihazı

Dokümanlar

Filtration Group Gas Filter Separators
