Keyence görüntü işleme sistemlerini seçmek için 2 neden!

Keyence görüntü işleme sistemlerini seçmek için 2 neden!

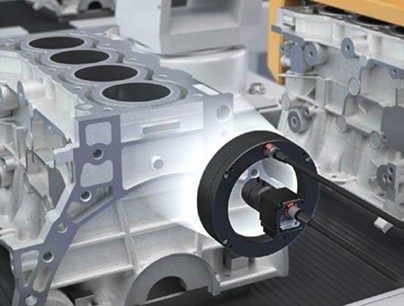

Döküm malzemeler ve metalik yüzeylerde karakter algılama ve datamatrix okuma zorlu bir süreçtir. Kararsız algılama ve okumanın arkasındaki ana faktör ise düşük kontrastlıktır.

LumiTrax™ teknolojisi, akıllı aydınlatma ve gelişmiş denetim algoritmasının birleşimdir. Bu teknoloji stabil inceleme için küçük, pürüzlü yüzeylerde kontrastı geliştirme etkisine sahiptir.

LumiTrax™  teknolojisi, otomatik ayarlı bir navigasyon sistemidir. Bu menü, kullanıcıyı en iyi kontrasta sahip görüntüyü kolay bir şekilde seçmeye yönlendirir ve optimum parametreleri kendisi yapılandırır.

Uzmanlarımızla iletişime geçin

Entek Otomasyon’un uzman mühendis ekibiyle tüm sorunlarınıza çözüm üretiyoruz.
