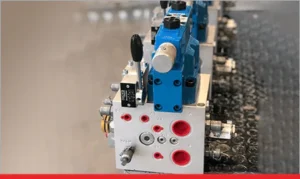

Hidrolik Blok Çözümlerimiz

Hidrolik Blok Çözümlerimiz

Valfleri ile birlikte, test edilmiş ve basınç ayarları yapılmış, montaja hazır hidrolik bloklar

Uzman mühendis, tasarım ve üretim ekibimiz tarafından, uygulamalarınıza özel üretilen hidrolik bloklarımız, tüm teknik ve ekonomik gereksinimlerinizi en doğru şekilde karşılayan, kompakt boyutlu ürünlerdir. Entek hidrolik manifold blokların özellikleri ve faydaları aşağıdaki gibidir:

 

• Devre şemasının çiziminden, CAM aşamasına kadar, dijital ortamda iş akışı sayesinde, hata riskinin ortadan kaldırılması

• 5 eksen CNC ile üretim sayesinde kompakt boyutlar ve kaliteli, standart hidrolik blok üretimi

• Üretimden sonra, hidrolik blokların testleri valfleriyle birlikte yapılır ve bu şekilde sevk edilir. Sizin valf bağlamakla, basınç ayarlamak gibi işlemlerle uğraşmanıza gerek kalmaz.

• Sertifikalı malzemelerden imalat sayesinde, hidrolik blokların kullanımı sırasında herhangi bir çatlama, kaçak gibi sorunlarınız olmaz.

• Kısa ve güvenilir teslim zamanları

 

 Entek Hidrolik Blokların Özellik ve Faydaları

Müşterilerimiz tarafından ya da uzman proje mühendislerimiz tarafından, müşteri ihtiyaçlarına göre çizilmiş devreler, proje ofisimizde en ince detayına kadar 3D olarak tasarlanmaktadır. 3D tasarımı tamamlanan hidrolik bloklar müşterilerimizin onayından sonra, CAM işlemini takiben CNC tezgahlarda üretilmektedir. Talaşlı imalatı tamamlanan hidrolik bloklara, %100 ölçü ve bağlantı kontrolünden sonra kaplama işlemi uygulanmaktadır. Kaplama işleminden sonra, valfleri takılarak, hidrolik blokların hepsinin işlev kontrolü ve varsa üzerindeki basınç, debi ayarları yapılmaktadır. Sevk edilen hidrolik blokların hepsi kullanıma hazır olup, sadece giriş ve çıkışları bağlamak dışında, kullanıcıların yapması gereken bir şey kalmamaktadır.

 Üretim tesisimizde tüm standart kavite takımları bulunmakta olup, sfero, alüminyum ve çelik malzemeden hidrolik blokları çok kısa zamanda üretebilmekteyiz. Hidrolik bloklarımızın üzerlerine seri ve lot numaraları kare kod olarak basılmakta olup, hidrolik blokların izlenebilirliği, uzun yıllar sonra bile sipariş verilse, aynı ürünü almak mümkün olmaktadır.
